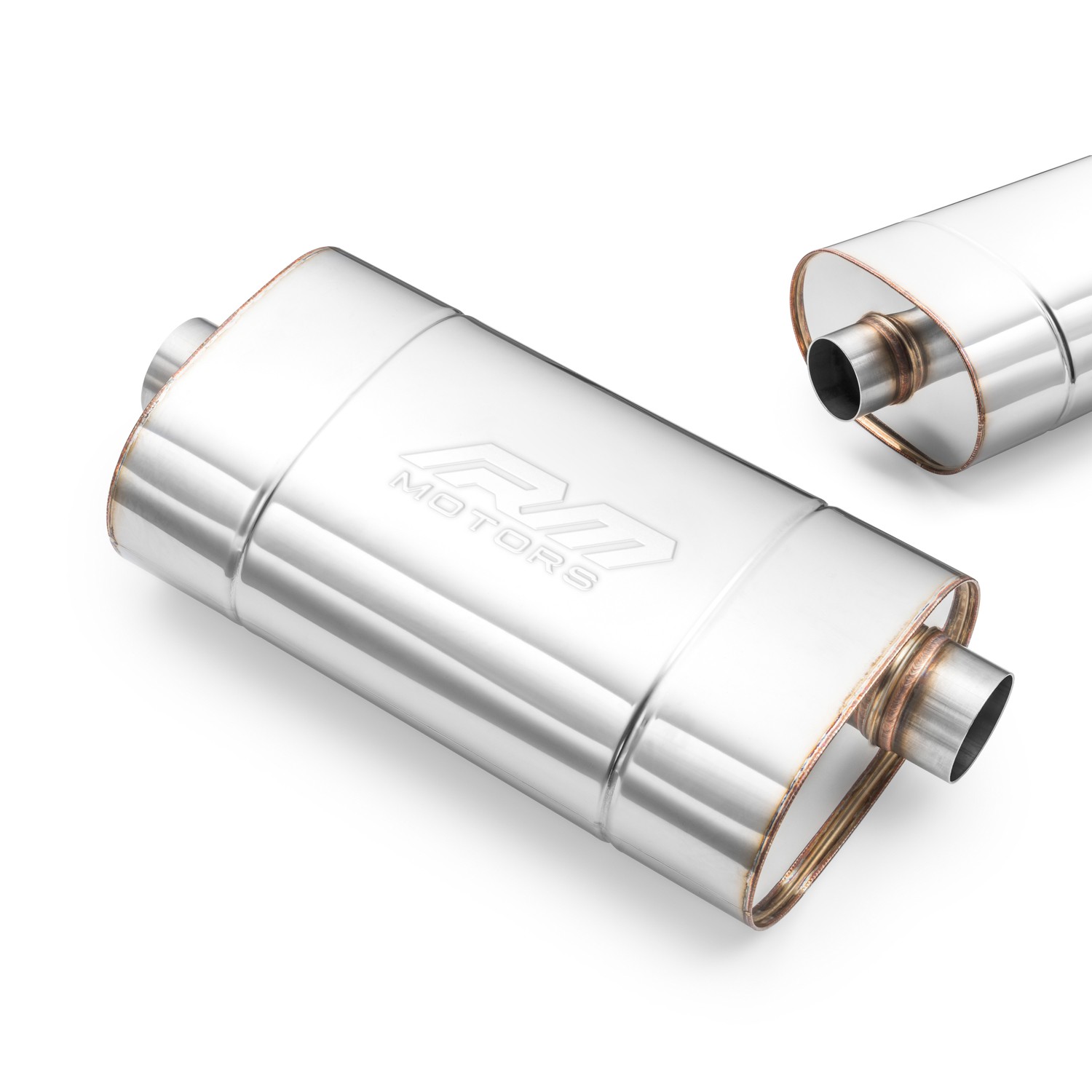

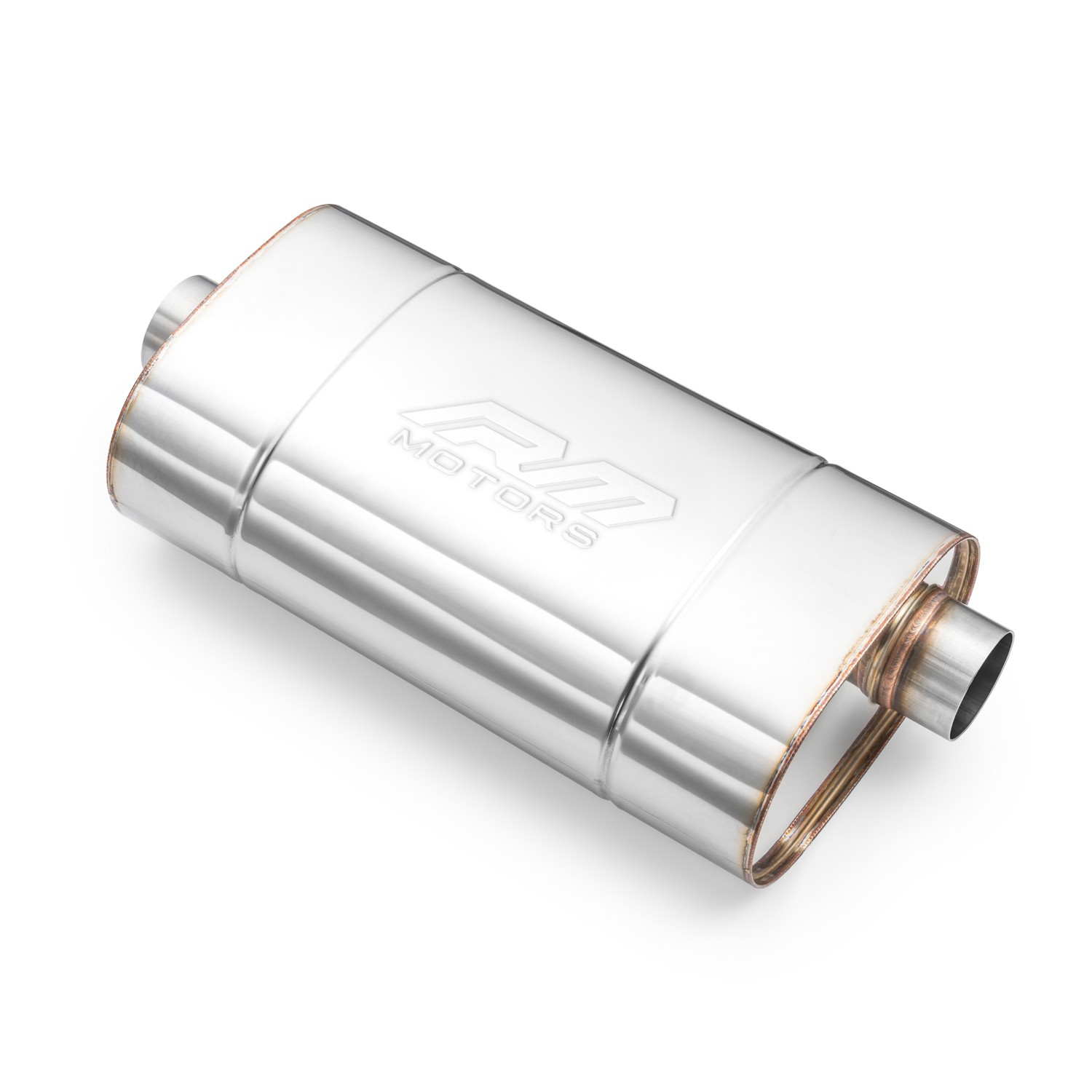

RM Motors RM MOTORS JEEP COMMANDER V8 5.7 2006-2010 Silencer

Muffler dimensions:

Can length - 450 mm

Pipe diameter - 60 mm

Muffler box width / height - 130x220 mm

If you plan to modify your exhaust system to a greater extent, also increasing the diameter of the passage compared to the original, then we recommend ordering a model with an increased diameter of the passage

63.5 mm - model E002 / 63/450

70 mm - model E002 / 70/450

76 mm - model E002 / 76/450

However, if you want a more subdued sound, you can order the version with a silencing embossing, available at another auction, the EP002 / 60/450 model. Or similarly for the version with embossing, other flow diameters:

63.5 mm - model E002 / 63/450

70 mm - model EP002 / 70/450

76 mm - model EP002 / 76/450

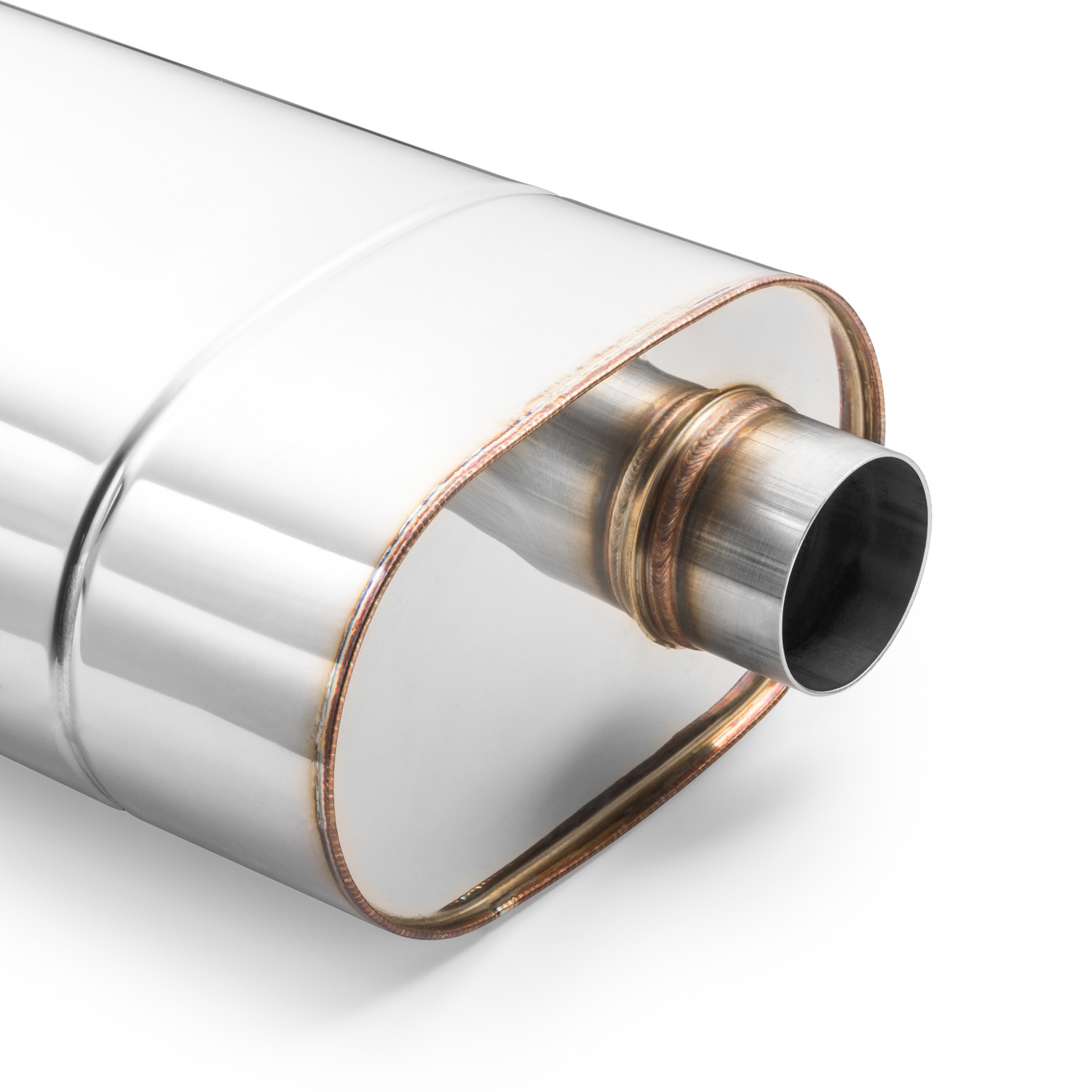

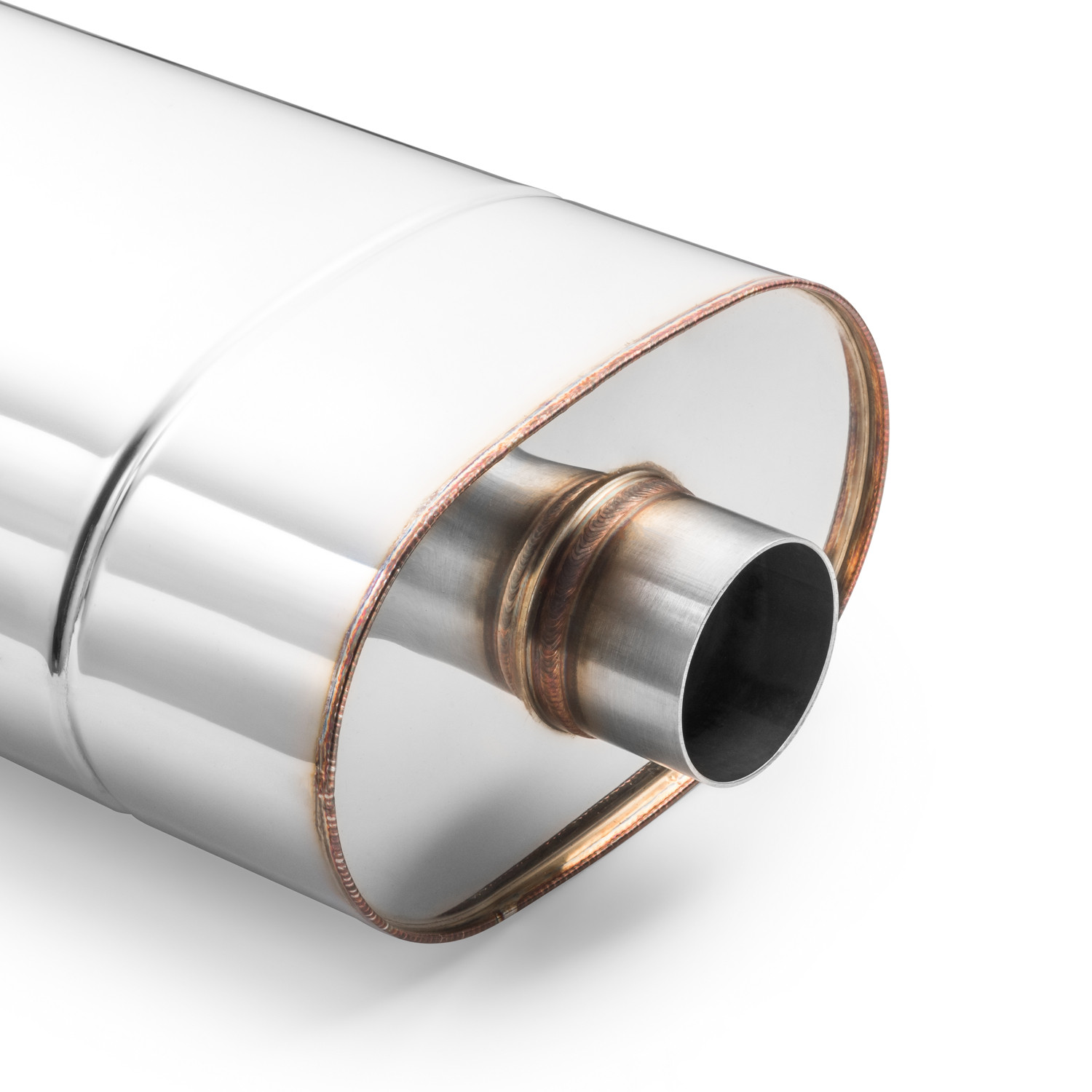

One side of the muffler with offset through tube outlet.

The through-tube diameter is always the same both inside and outside the muffler. We do not use the tricks of upsetting and expanding the muffler nozzles, where from one muffler model several models with different pipe diameters are made, and in fact the diameter of the passage remains the same.

The other side of the muffler with the center entry of the through tube.

The silencer assembly side for the car as above - centrally inlet / outlet shifted.

In the case of universal use, the mounting side does not matter.

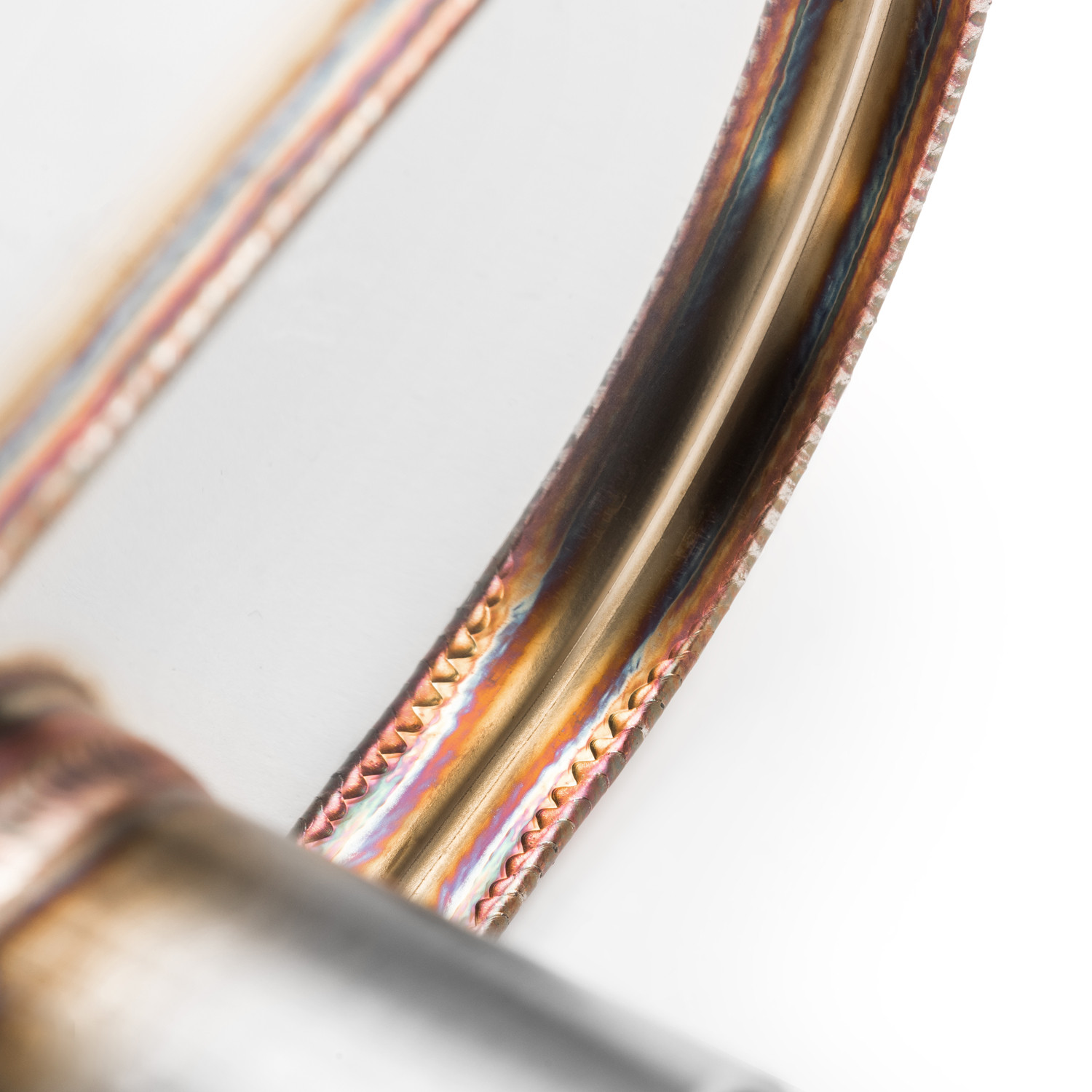

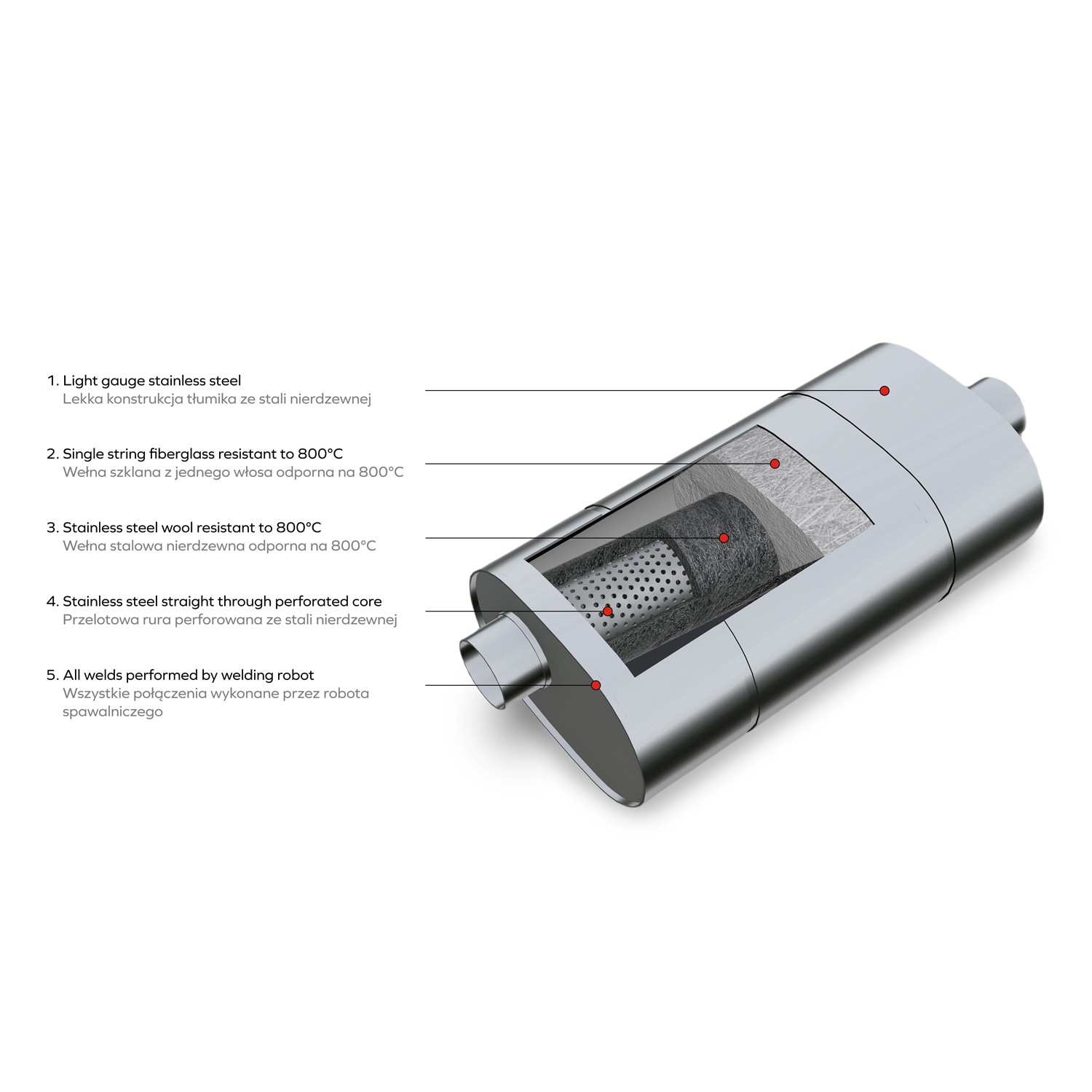

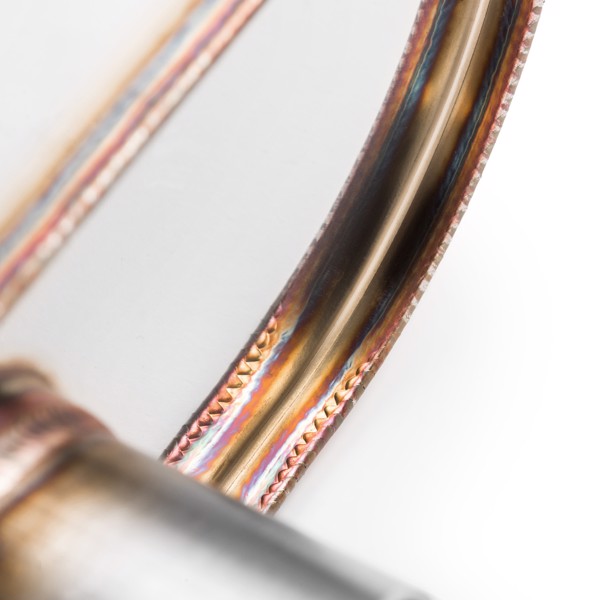

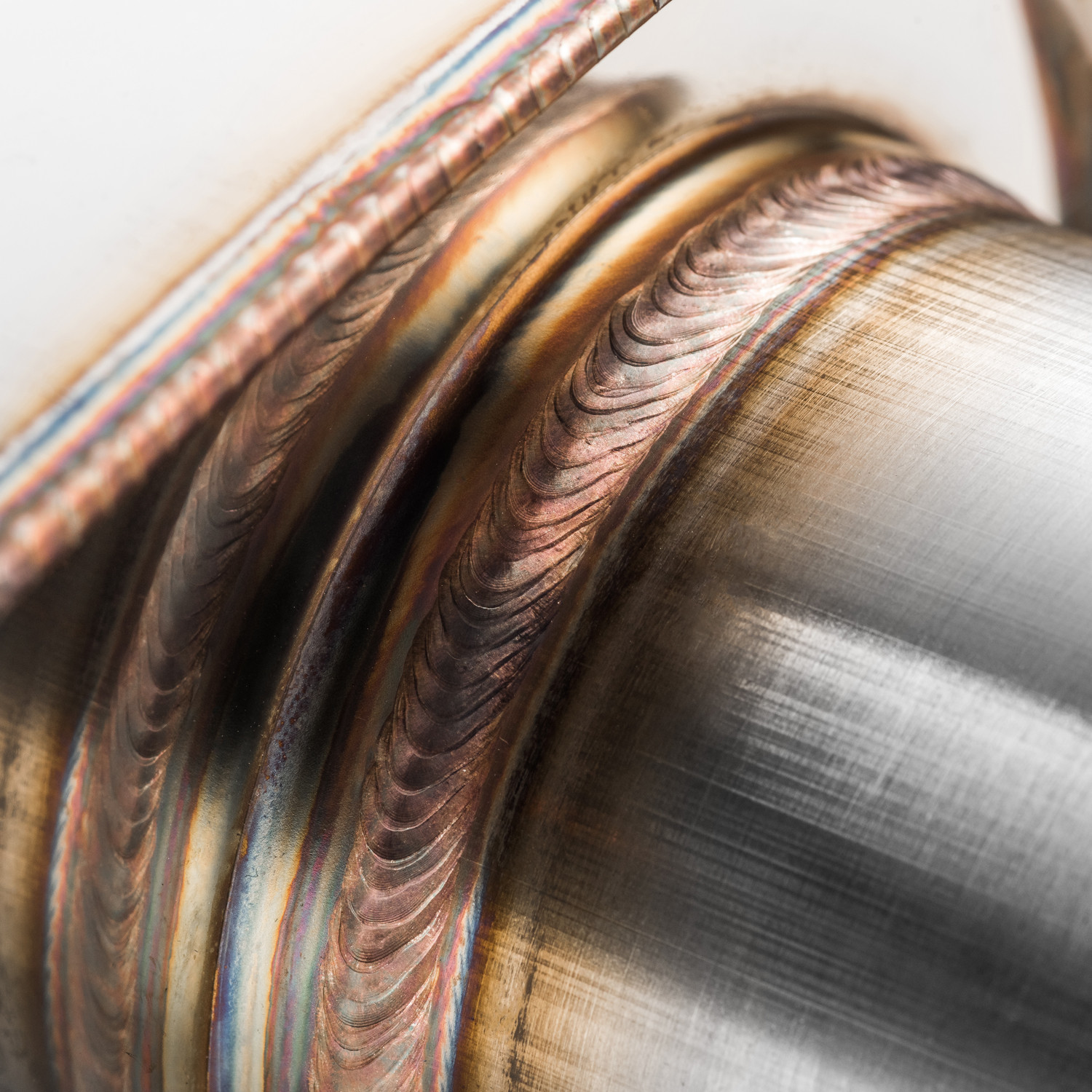

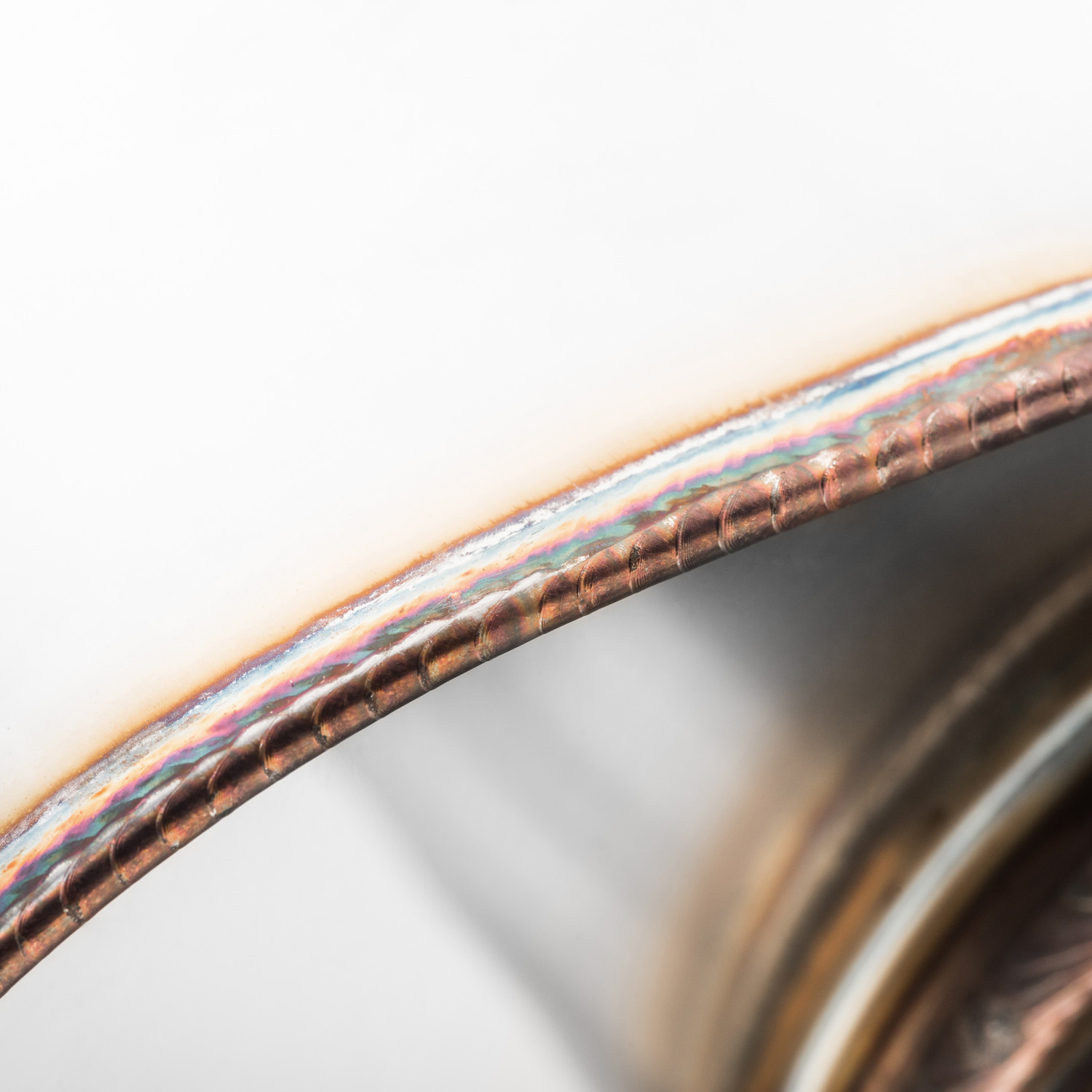

A silencer with a pass-through construction, damped with stainless steel wool and a glass mat resistant to 800 degrees Celsius (glass mat made of full hair - we do not use scraps). Fully welded by welding robot, hand finished. Each element of the product is made using CNC technology. Crack-resistant embossed bottoms have been used.
